[Introduction] General fixed or movable belt conveyor.
[Capability] 78-2995 t/h
[Application] Belt conveyor has many advantages, such as large conveying capacity, simple structure, convenient maintenance, low cost and good versatility. It is widely used in mining, construction, hydraulic and chemical industries.
[Improvement] With backstop, electric drum, external motor type electric drum or motor reducer can be used and distributed according to actual working conditions.
Chat With Us
Leave Message

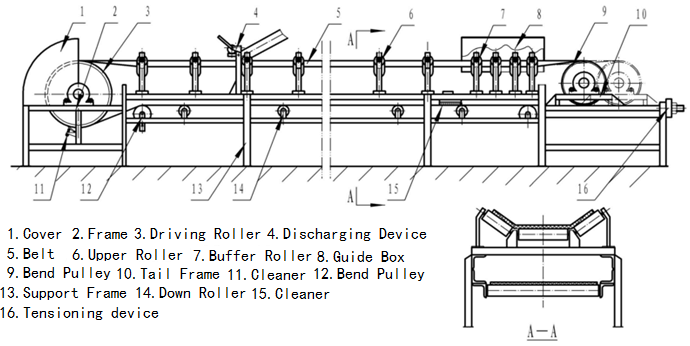

Belt conveyor is mainly composed of drum, conveyor belt and bracket. The drum that drives the conveyor belt to rotate is called the driving drum. Another drum used to change the direction of the conveyor belt movement is called the reverse drum(Bend pulley). The driving drum is driven by a motor through a reducer, and the conveyor belt is driven by the friction force between the driving drum and the conveyor belt. The driving drum is usually installed at the unloading end to increase the traction force, which is conducive to pulling the belt.
|
Belt Speed m/s |
Belt Width mm |
|||||
|
500 |
650 |
800 |
1000 |
1200 |
1400 |
|
| ? |
Capacity tph |
|||||
|
0.8 |
78 |
131 |
— |
— |
— |
— |
|
1 |
97 |
104 |
278 |
435 |
655 |
891 |
|
1.25 |
122 |
206 |
318 |
544 |
819 |
1115 |
|
1.6 |
156 |
264 |
445 |
696 |
1048 |
1427 |
|
2 |
191 |
323 |
546 |
853 |
1284 |
1748 |
|
2.5 |
232 |
391 |
551 |
1033 |
1556 |
2118 |
|
3.15 |
? | ? |
824 |
1233 |
1858 |
2528 |
|
4 |
? | ? | ? | ? |
2202 |
2995 |
